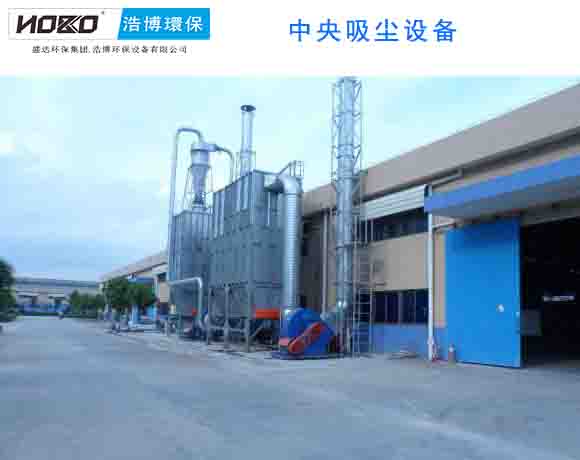

Central aspiration equipment

Equipment of environmental protection of Zhejiang grand rich, tail gas of efficient and energy-saving industryHandle equipment, offer pollution to administer a system for you mandatory service. EquipmentUse fixed number of year can amount to 20 years of waste gasProcessingScience and technology of environmental protection of eminent a gathering of things or people is save labour of your save worry! Industrial tail gasHandle equipmentWelcome to order.

Below the action of systematic air exhauster, the air current that contains dust enters dust catcher to control dirt chamber from aspiration a place with a draught, the air current that contain dirt is touched in baffle plate attack next air current to flow to ash bucket, at the same time speed is decelerated, in inertial fall with the action of dust, thicker grain dust falls into ash bucket directly and from inside the orgnaization that discharge ash discharge is divided, rise to control the function of dirt beforehand, the dust with lighter other follows gas flow direction to go up, be in to filter by adsorption on the appearance of bag, the gas after filtering clean gives wind to be in charge of eduction from top part, as filter the abidance of operating mode, be in quickly the dust of filter bag surface is increasing, the moving obstruction of equipment also greatens, indispensible adopt pulse clear ash, cut off random first the exit passageway of one room, undertake pulse clear ash next and sedimentation through the nature of a certain number of seconds, such dust are kept clear of.

Remove dust in the center of industry equipment is the equipment of environmental protection processing that suits all wood to produce treatment company, the wood chip that woodworker place produces and dust are used in collecting furniture factory, floor factory, wooden door factory can effectively to machine a process in production centrally, those who assured the manufacturing environment of the workshop and staff member is healthy.

Remove dust in the center of grand rich carpentry equipment uses fan of motivation of negative pressure type (5.5KW, 75KW) effective avoid the wood chip in groovy and adsorptive process arises to dynamical place destroy, affecting adsorptive result while greatly the service life that added dynamical fan. Conduit design uses hermetically sealed conduit of helix of central type laid, make sure adsorptive pressure improves use efficiency. According to dynamical parameter but custom-built and corresponding pulse filters system, optimize filter the area is the largest the detached air that change flies upwards 2 times when prevent dust with dust accomplish concentration to handle. Through observing a mouth but dust of observation wood chip collects a circumstance and can undertake unity handling at any time at any time, clear ash is convenient. Full automatic system of frequency conversion control is intelligent control removes dust the control system of report of equipment waste time, the rotate speed of fan of self-correcting of mechanical ratio of operation that produces according to the workshop and can effective managing the sources of energy. Remove dust in the center of Ming Jimu labour facilities serves Yu Dazhong small-sized carpentry makes treatment company, improved the working environment that produces a workshop effectively, reduced the occurence rate of fire, what assured a staff member is healthy, got broad reputably.

Remove dust in the center of industry equipment is company of treatment of corresponding industry production the facility of efficient environmental protection that gathers processing content of the dust that produces in production process, grain, fiber centrally, by me company own research and development is produced custom-built, offer the most excellent design program according to spot circumstance of the client, spot module type goes all out outfit. Give priority to motivation by fan of negative pressure type, module filter undertakes filtering in the center of pulse type, dust is collected centrally to in the center of remove dust equipment grey storehouse. Configuration parts to have scintilla sensor and lukewarm feeling inside grey storehouse and conduit automatic gush drenchs equipment and explosion proof door, make sure equipment uses the safe issue in the process. PLC controls system of automatic frequency conversion, achieve efficient and energy-saving, remove dust rate achieve 95% above, remove dust in the center of equipment can assure the wholesome environment inside the workshop effectively, those who assure a worker is healthy, discharge all accord with a country relevant provision.

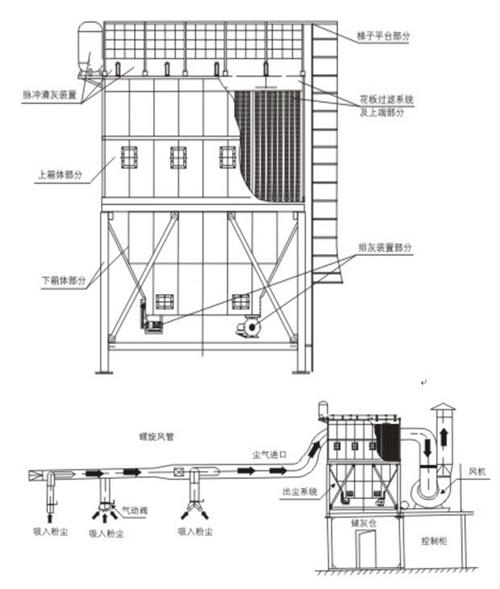

1, filter principle: The gas that contain dirt is entered by air inlet, when passing ash bucket, dust of big grain of the part in gas suffers force and gravitational action to be departed to come out, fall into ash bucket bottom directly. The filter bag of the casing in after the gas that contain dirt passes ash bucket, be being entered filters area, gas crosses filter bag, dust is left in the surface outside filter bag by block, after the mouth of bag of aeriform classics filter after purifying enters top part system, again by give blast tuyere eduction.

2, clear grey principle: As filter the extension of time, the dust layer on filter bag is accumulated ceaselessly thick, remove dust the obstruction of equipment rises ceaselessly, when equipment obstruction rises to set to be worth, clear grey device begins to undertake clear ash. Above all, room of a cent promotes a powerful person to shut, will filter air current is cut off, next open of electromagnetism pulse a powerful person, compress air to expand quickly inside top part body with extremely short time, swarm into filter bag, make filter bag expands be out of shape generation is oscillatory, below the action that erodes in converse air current, adhere to in be being come off fall into ash bucket in the apparently dust outside filter bag. After clear ash ends, electromagnetism pulse a powerful person is shut, promotion a powerful person is opened, this room restores to filter again condition. Clear ash each room is ordinal undertake, from Qing Dynasty of the first room ash begins to begin to be a clear grey cycle to clear ash.

3, dust collects: Course filter and the dust that clear ash works to be held back to come down all fall into ash bucket, center eduction by ash bucket mouth again.

Remove dust in the center of carpentry remove dust in the center of systematic carpentry remove dust in the center of systematic carpentry systematic major manufacturer, grand rich environmental protection

1, characteristic: Bag type removes dust effect is tall, after forming dust film, can amount to dirt of 99.8% above purify, discharge chroma general, ＜ 50mg/Nm? . A variety of filter cloth can offer an alternative, all classics intensity, sex of air permeability, temperature, acid-proof bittern checks classification, remove dust in the center of furniture equipment parameter, do / beautiful changes a design. Instantaneous is continuous rinse, remove dust in the center of furniture equipment manufacturer, wind force is steady. Gush of pulsatile high pressure is washed, canal of the cloth that decrease a province grinds loss, lengthen cloth to run service life.

2, power: 11KW, 56KW3, wind force: 40m3/min, 1500m3/min4, pressure: Millimeter of 300-500mmAq(water column) between
