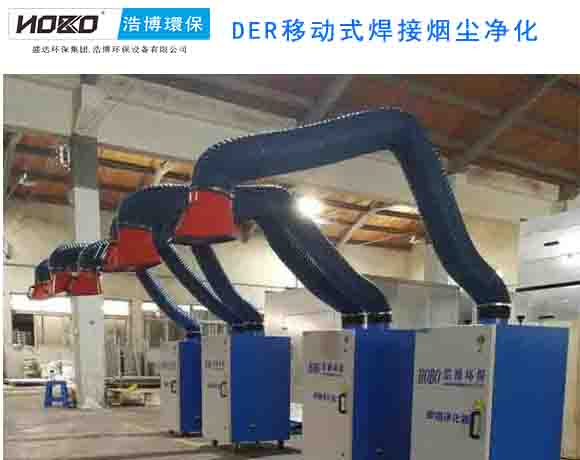

DER movable type solders soot purifier

One, functional brief introduction

Soldering regular meeting of the classics in the operation produces a few toxic material, basically salt of cyanic acid of acid of oxide of ozone, nitrogen, aldehyde, colophony, different, sulfide, hydrocarbon, carbon monoxide, fluoride and chloride wait. The ozone inside weld zone is classics high temperature actinic react and arise, the short ultraviolet ray that electric arc and plasma radiate give makes the oxygen element in air decomposes oxygen atom, these oxygen atom or oxygen element are in below high temperature after the energy with be obtained certain, bump each other can generate ozone. Ozone is inspiratory inside human body, basically be exciting respiratory system is mixed neurological.

Below the high temperature of electric arc, the azotic element in air can be become by direct oxidation azotic oxide. The sort of oxide is very much, basically have N2O, NO, NO2 and N2O5 for rufous gas, heavier than air, the 4-5 that its noxiousness is NO times, encounter water can become nitric acid or inferior nitric acid, produce intense stimulative effect, the azotic oxide that inspiratory Gao Nong spends the staff member can cause acute asthma disease or produce emphysema, long-term and slow action can cause neurasthenia condition group reach inflammation of chronic respiratory tract.

The carbon monoxide in soldering basically comes from carbon dioxide decompose, in carbon dioxide protective solder lieutenant general produces many carbon monoxide gas, the carbon monoxide gas of minim produces only in the arc welding of other, contain fluorine solder material is participated in when soldering, can produce the HF gas of minim, HF has very strong excitant.

These harmful material produce above and fly upwards in air, in the liver that invades a person through respiratory tract, lung, heart and vessels and blood, gobbling up human health badly, bring about the occurrence of a lot of occupational disease, be like: Infection of allergy of lung cancer, asthmatic, eczema, bronchitic, skin, respiratory tract is waited a moment, weigh disorder central nervous, destroy digestion, cause complication and exhaustion dies.

Purifying device of air of right choice industry is to every enterprise one important and decision-making. The health of employee and safety are the major issue that interest remote involves, manufacturing profit also this chooses hang on.

DER solder soot purifier is one solders for industry only the purifying device that soot designs with light qualitative grain, it is deft and agile, the operation is convenient, it applies extensively at chemical industry, electron, metal at the same time the treatment of treatment, nicotian, glass, pharmacy, food, place that purifies industry and the other such as room, hospital to dust, aerosol is polluted. Pollution won’t produce 2 times in safeguard, do not affect the workshop operation, premise that does not affect equipment life to fall, use multistage purifying device, to soldering soot waste gas undertakes depurative handling, already waste gas of smoke of solder of can effective purify, can taste of tar of degradation solder smoke and all sorts of poisonous and harmful gas.

2, working principle

Carry fan gravitation action, dust shield of universal of classics of solder smoke waste gas is inspiratory equipment air inlet, equipment air inlet is in set block firearm, firearm of scintilla classics block is left by block, soot gas enters expansion chamber, use gravity and go up air current, fall thick bead dirt directly above all to ash bucket, atomic soot is caught by filter core collect is outer the surface, core of filter of clean gas classics filters after purifying, flow into clean room by filter core center, after adsorption of filter of classics activated carbon is purified further, clean air amounts to mark eduction via giving wind gap again.

Solder smoke purifier can have something made to order thin arm type and type of double arm form, can use alone, many OKer also group is used, installation is convenient, did not install the technical requirement of the respect basically to the user. Flexible and inspiratory arm is in charge of to import wind of PVC steel wire, fight corrode, be able to bear or endure high temperature of 140 ° C, cover mouth matchs wind force control valve. Belt of purifier lower part locks up trundle oneself, can free inside workshop shift, fixed, get used to ability to what yard closes strong.

The gas after solder smoke purifier is purified but direct and indoor amount to mark to discharge, conduce to those who keep indoor closing, maintain room temperature, facilitating exercise.

3, equipment characteristic

1, set fan of special entrance turbine and electric machinery, use those who prevent electric machinery to burn out to prevent overload circuit, security is high, character of service is stable.

2, pulse backflushing type is automatic clear ash: Filter core is used all-around automatic backflushing Qing Dynasty is grey, make clear ash of filter core surface more complete, clean. Can make sure dust catcher has a constant suction from beginning to end wind force; Pneumatics engine portion provides link for high-pressured glue, bottom high pressure takes energy of life, can ensure purifier to be in good working position from beginning to end.

3, filter canister uses the United States to import material, service life is long, can absorb the dust grain of 0.3 μ M, have to wet sex and agglutinant dust filter very well the effect.

4, use but the universal of 360 degrees of optional activities sucks an arm, outside can happening from flue gas, suck except flue gas, the collection that raised soot greatly is led, assured the health of work staff.

5, purifier interior is mixed in the light of fire hidden trouble big grain is slaggy adopted 3 preventive measure, make the service life of purifier longer, more on the safe side.

6, clean air discharges blast tuyere to direction guides equably and disperse from grille shape, fall noise to lowest consequently.

7, the versatile trundle of new Han Shi that takes stop a machine by cutting off the power with appropriative, the optional shift of handy device and fixed position.

8, photoelectricity is controlled, close machine, efficient and energy-saving.

9, performance of material of the bad news inside purifier is steady, change convenient.

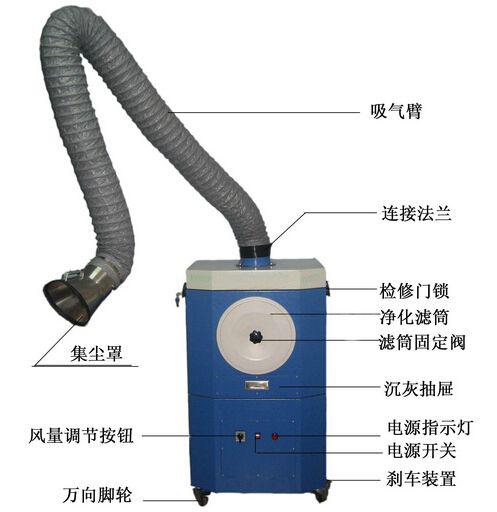

4, parameter explains

It is with DER-1500D model exemple:

Wind force: 1500m3/h

Power: 1.5KW

Crust material: Armor plate of 1.8mm cold rolling

Finishing: ? Does refute Min hang?

Power source requirement: 380V/50HZ (optional)

Filter area: 10m2

Inspiratory arm: Φ 150mm, 3m(is optional)

Over all dimension: 650*670*1250mm

Before buy air current all buy board: 1

Before buy thick filter: 1

Advocate filter core: 1

Postposition divides flavour filter: 1

Clear grey pattern: Automatic

Purify efficiency: 99.97%

Noise: ≤ 72dB

Universal sucks a cover: Length can go to 3 meters from 2 meters between, freedom is rotational

DER series solders watch of soot purifier parameter

Equipment modelHandle wind force M3/hPower KWVoltage V/HZFilter area ㎡Compress air (Mpa)Over all dimension (long * wide * is tall) MmNoise DB(A)

DER-TBR1200D12001.1380/5080.5-0.6650*670*1250≤ 72

DER-TBR1500D15001.510650*670*1250≤ 72

DER-TBR2400D24002.212650*670*1250≤ 75

DER-TBR3600D36003.015650*670*1250≤ 75

DER-TBR2400SD24002.212650*670*1250≤ 75

DER-TBR3600SD36003.015650*670*1250≤ 75

5, installation explains

should be used on the ground of solid evenness, avoid machine rock to produce noise.

When uses a machine, the tension that should note power source and this machine whether conform to, do not use an electrical outlet jointly with other electric equipment.

is in when move or carrying a machine, the machine tilts not to exceed 45 degrees please.

uses this machine to should notice to the space of 50cm-100cm is less than all round reservation.

equipment operation is simple, already used intelligence to change a design inside the edition of control system face of equipment, the solder contact upper part that aspiration nozzle alignment needs to purify, open mains switch to be able to begin the work, mains switch is shut after the operation is finished.

The join need of inspiratory tube and equipment is proper and sealed, avoid tube to be reached to press by outside force collision fold, affect air current possibly to pass otherwise.

6, service instruction

Before using this device, use a method correctly what ask the person that use to be familiar with this equipment.

Be being elaborated about what safeguard and maintain in operation instruction handbook is to use person good movement of safety and equipment fine.

Our company are used in the light of the product undeserved the person harm that cause and belongings loss do not bear any responsibility.

Before using this device, read this manual carefully please, the spot uses a manual to place consult easily place.

The operation is as follows:

1, equipment is pushed to working site, ground level, confirm the link of relevant fittings. Step on the fixed trundle of equipment next securing to prevent equipment to slide, will inspiratory arm adjusts appropriate position.

2, after join good power supply, open switch (if discover murmur, shut electric machinery first without fail, shut facility power source next, check and adjust equipment screw to whether appear become loose, prohibit destroying equipment interior structure)

3, after equipment uses 72 hours normally, to make sure sequel uses the effect and filter tube service life proposal clears in time the adherent dirt on filter canister.

4, equipment needs to clear after use period of time the dirt inside ash bucket, open ash bucket with cross screwdriver all around screw is taken out can.

5, equipment uses time longer, each place clears the place that still requires an attention has those who enter the block network of fire of gas storehouse to clear the job, open the warehouse that take energy of life, examine the dirt case on block network of fire, clear in time.

7, safeguard a specification

Equipment produces equipment standard according to the workshop in machining a process, after the test having for many times in the light of each place and system below the condition that produces safety and operation stability in safeguard, square investment is used.

Abide by following regulation please when undertaking maintenance:

1. Clean machine crust, change when spare parts or change job status, indispensible close machine unplug outlet of next power supply source.

2. Avoid extruding to procrastinate drag wait for any means attaint electrical wiring. Whether does power supply cord of regular examination damage, if power supply cord has any damage, should immediately disuse machine undertakes the overhaul by professional, change attaint power supply cord.

3. Of the machine deposit: Do not use when the machine when, should put its dry indoor, avoid insolation drench.

4. Equipment needs often cleanness filters filter canister. After preventing to jam, affect aspiration result.

Relevant industry knowledge

One, GB16194-1996 of standard of sanitation of soot of the electric welding in workshop air;

Solder the soot in workshop air is highest and concessional chroma is 6mg/m3.

2, solder smoke purifier is general technical condition LD37-92;

1. Solder of soot purifier filter efficiency cent is 3 class:

One class: 99.5%

2 class: 98.5%

3 class: 97.5%

2. Solder soot purifier wind force must be in 50m3/h above.

3. Fan noise should not exceed 85dB.
