One, pneumatic force does not have waste gas of pump water Xuan to purify ark technology principle

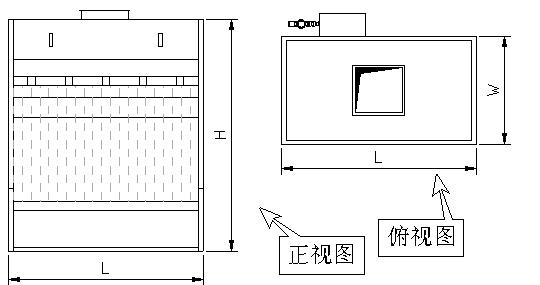

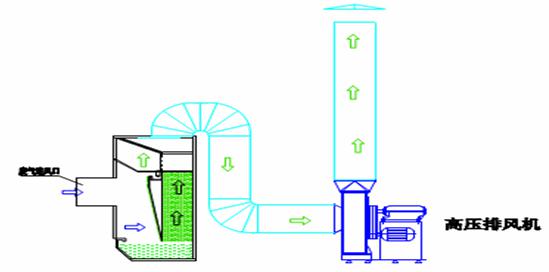

Pneumatic force purifies ark without waste gas of pump water Xuan is Ministry of Aviation a kind when the 4th designing institute introduces from England wet handle equipment, hind the improvement with ceaseless classics, this equipment does not have water pump and complex pipeline system, avoided the difficult problem that water pump, conduit jams. The convulsions air current that uses a fan brings the water in shooting promotion water tank and form circular water screen. The air that contains grain substance is bumped with water act above all, among them partial grain content is held back Yu Shuizhong. Cross water shade to enter passageway of boiling air-water agitate next, with the water generation in the passageway intense agitate mixes. After entering collect to enrage box, velocity of flow is reduced suddenly, air-water is detached, the gas after processing crosses manger, in discharging atmosphere by platoon fan; And excessive cistern is flowed into after collect be been in by detached water enrages box assemble, from excessive cistern overflow to water circular water screen is formed on act board, such move back and forth circulates, go the place grain composition in effective purify air current. Add in circular water special lacquer mist garrulous coagulates agent, change the conglutinate condition of grain content, make grain content condenses into clinker to float at surface, facilitate clear. Facility construction design is reasonable, moving stability, below normal use circumstance, equipment moving life can amount to 15 years of above.

2, technical characteristic

U grain content purifies efficiency tall

Of the structural characteristic that purifies ark to be provided alone without waste gas of Xuan of water of pump water Xuan, craftsmanship purify means, multistage to purified a process continuously to decide to purify efficiency, the efficiency of purify of grain content dust that arises to waste gas is as high as 98% above.

U installation goes to the lavatory neatly

The installation field that purifies ark equipment itself without waste gas of Xuan of water of pump water Xuan is general and beardless special earth builds a base, need space only level off, no matter be,build workshop or original workshop to suit very much accordingly.

U equipment runs on the safe side

Without Shui Xuan of pump water Xuan waste gas purifies ark to be done not have besides platoon fan other any locomotive components, because this wants to discharge fan to work normally only, without Shui Xuan of pump water Xuan waste gas purifies ark to be able to be used normally.

U does not have liquid waste eduction

The facility construction that purifies ark without waste gas of Xuan of water of pump water Xuan decided the adaptability to water quality is very strong, although contain the water of many grain content to also won’t be in the loop,jam, won’t purify the effect because of what there is grain thing in water and affect waste gas more, because of this cistern medium water does not need to discharge.

U equipment is operated and safeguard simple

Without Shui Xuan of pump water Xuan waste gas purifies ark to promote circular water to form water screen through discharging fan, need not the auxiliary unit such as filter of water pump, valve, conduit, because this is safeguarded daily,operate very simple. Use daily need open to discharge fan to be able to work normally only; Decide equipment according to the volume that dust measures additionally clear periodic, be worth according to the PH of water (PH=11 — 13) the circumstance adds right amount garrulous to coagulate agent.

3, equipment is tectonic

1. Without Shui Xuan of pump water Xuan waste gas purifies ark

L model: SD-080

L amount: 1

L purifies efficiency: Be more than 98%

2. Fill automatically water unit

L uses automatic valve filling water

L material is qualitative: Stainless steel

L amount: 1

L common breakdown and eliminate a method

L 1, fan, electric machinery, the concerned breakdown reason in if discover fault,concerning operation instruction handbook of equipment of form a complete set by each eliminates a method to undertake eliminating.

Circuit of L 2, control malfunctions to eliminate by electric principle graph.

4, use with the operation

Use operation personnel is opposite above all the structure of this equipment, working principle and operation instruction handbook of equipment of form a complete set are read carefully, manage the property that knows this equipment, operate essentials and operating sequence, prohibit violating compasses start, prevent to produce contingency.

4.1 preparation work

1, examine electrical system, below the circumstance that ensures safety is normal, open total power supply.

2, mix regularly nonsked examination fan is normal, whether to have unusual sound.

4.2 stop machine

1, stop after the job ends when machine, answer to shut a fan first.

2, shut total power supply.

5, safeguard, maintain reach a note

This specification is read in detail please before equipment is used, set full-time personnel operation and government please. Safeguard, maintain power source disconnects first please when spray paint room, pensile and apparent out of service is indicative, the life that meets minatory person otherwise is safe.

The equipment supervision before the job:

1. Check and affirm operation pushbutton label is correct.

2. Whether is examination catchment valve shut.

3. The eyewinker inside cleared excessive cistern and cistern. (each week clears)

4. Examination water level is normal.

5. Every order is right the room body of this equipment, exterior wind canal has by foreword examination without flat phenomenon.

6. Electric part asks to carry out by electric operation.

7. The maintenance of electric machinery, fan and maintain the maintenance in the operation instruction handbook that presses facility of form a complete set and maintain the part consults carry out.

8. Fan does not undertake spray paint works please below the circumstance of end open. Forbidden the spray paint below the circumstance that does not have water in water act works.

9. The use that this equipment can regulate according to manufacturer only will use. Authorized changes his costume or dress or did not use the spare parts that is not this equipment manufacturer to sell or be recommended, the likelihood causes fire, get an electric shock and other harm.

10. The maintenance of equipment can have center of after service of company of grand rich environmental protection only, or through our company attestation qualification gets the personnel of accredit undertakes, these personnel ought to be familiar with all warnings that this manual raises and operation measure very.

11. Any defective components and parts of an apparatus must change with corresponding spare parts, produce any problems to have nothing to do with our company otherwise.

12. If this equipment in use appears to quality problem maintains staff in time with full-time please or be contacted with our company

Discharge wind system

(1) regular examination (500h is controlled) , whether does connecting rod nut become loose between fan and electric machinery; Fan use 500h should be checked add lubricating oil, use 800h should be checked add lubricating oil. Can reduce service life of equipment and equipment security otherwise.

(2) fixed (180 days) examination fan secures a circumstance. Can reduce service life of equipment and equipment security otherwise.
