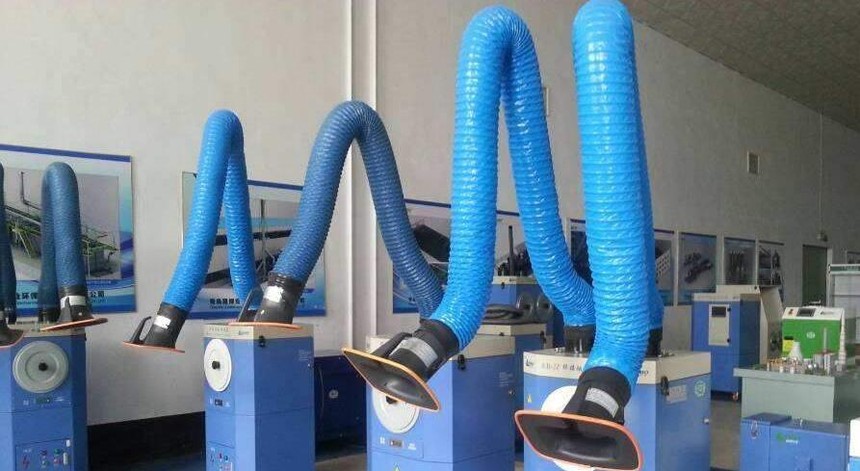

Solder smoke dust catcher

Solder smoke dust catcher summarizes:

Dust catcher of smoke of central type solder is me the company is aimed at solder the series product that soot processing design produces. Structural design is compact, reasonable. But the spot operating mode with different basis, design first-rate soot takes means and pipeline system. No matter be large,solder workshop, solder center , solder artificially product line, or the robot solders to all can use this kind of equipment product line to undertake soot is handled soldering, amount to mark to discharge.

Principle of solder smoke dust catcher:

Contain soot gas to enter dust catcher below the guiding of fan, be in usually, contain soot air current to filter through filter canister in entering clean air room, enter fan eduction to do clean air along conduit next, dust is arrested collect is filtering canister surface, this process works with respect to efficient like filter. As filter canister surface“Dirt cake ” form, press poor will ceaseless heighten, according to the backflushing time-interval of PLC controller set automatic pulse cleans working procedure to begin an action. Controller gives instruction electromagnetism a powerful person open, discharge presses open of a powerful person of your pneumatic diaphragm, make compress air course to guide tracheal enter clean air room. This compresses then air enters filter canister, the air that this instantaneous air current handles filter canister holds back a few seconds effectively, compress airy instantaneous air current to continue to enter filter canister medium, next radial blows the dust that collect canister leaving filter. Dust criterion as advocate the trend of air current, fall into ash bucket downward below gravitational action.

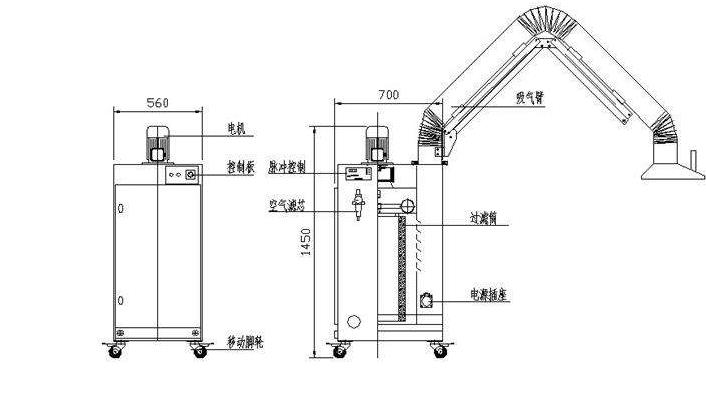

Characteristic of technology of solder smoke dust catcher:

1. tall applicability is designed

Dust catcher can get used to the big range wave motion of property of the gas that contain dirt, can do adaptability to be not mark design according to user situation;

2. unique structure is designed

Special structural design and component are chosen, relatively at standing to go to the lavatory to dust catcher installation disassembles;

1.High grade filter material, tall filter efficiency

Use solder smoke to remove dust special filter canister, layer of fiber of rice of exterior Fu accept, tall filter precision, yes<0.1μm Yan Chen You Jiao Gao Guo Lv Xiao Lv ；

4. is low moving charge

Low moving fare, optimized craft parameter design reachs canister of filter of special low resistance, be helpful for dust catcher low block efficient stability moves, reduce systematic specific power consumption, the loss that reduced filter makings effectively at the same time and defend the work;

5. is high quality / macrobian life

Use high quality component, raise equipment to run reliability, decrease defend the work; Introduce high quality filter makings and attachment entirely, mean life of accept rice laminating is far the use birthday that exceeds general filter canister

Life;
