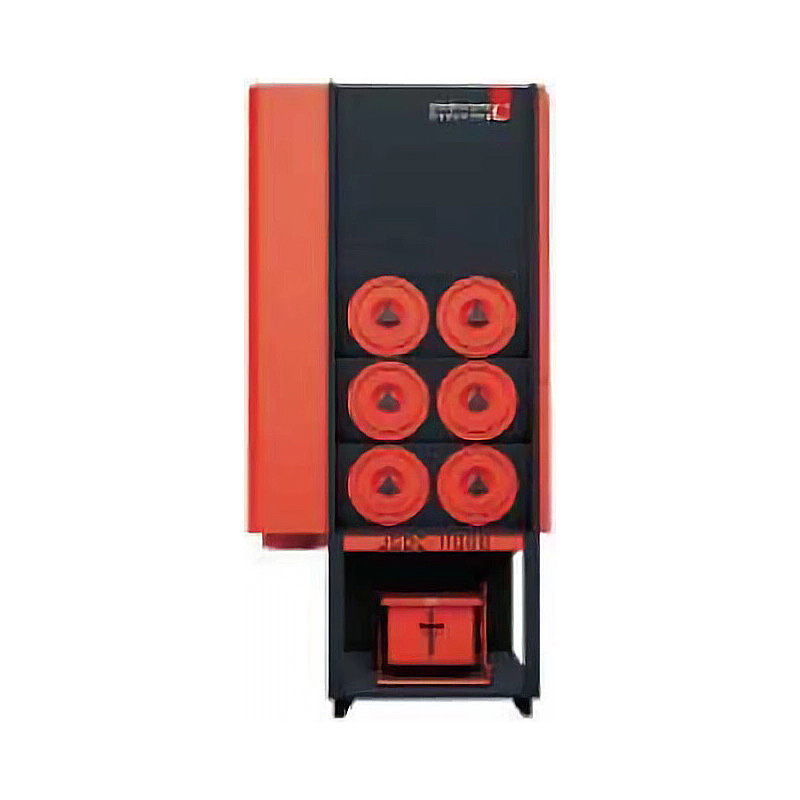

Laser welding smoke and dust removal integrated machine (JSDC-T)

Equipment model	JS DC-5500	JSDC-7500
Air Flow Of Treatment (m3/h)	5000m7h(±300m7h)	7000m3/h(±300m7h)
Motor Power (KW)	5.5kw	7.5kw
Voltage (V)/Frequency (Hz)	3X380/50	3X380/50
Cleaning Way	Pulse Venturi tube	Pulse Venturi tube
Compressed Air (Mpa)	0.5 〜0.6	0.5 〜0.6
Purification Efficiency Separation Efficiency By Mass	》99%	> 99%
Noise Level (dB)	W75±5	W 75±5
Dimensions (WX D x H) Dimension (mm)	L1375XW1510XH2500	L1425XW1510XH2950
Number of filter cartridges (PCS)	4	6
Filter element specification	4325X660	0325X660
Filter material	Nano flame retardant filter material	Nano flame retardant filter material
Filtration area	78m2	117m2
Dust removal interface Du5t removal interface	①250mm	Medium 300 mm

Equipment model	JSDC-11000	J S DC-15000
Air Flow Of Treatment (m3/h)	10000m3/h(±300m3/h)	14000m3/h(±300m3/h)
Motor Power (KW)	llkw	15 kw
Voltage (V)/Frequency (Hz)	3X380/50	3X380/50
Cleaning method CleaningWay	Pulse Venturi tube	Pulse Venturi tube
Compressed Air (Mpa)	05-0.6	05-0.6
Purification Efficiency by Mass	》99%	> 99%
Noise Level (dB)	W 75+5	W75+5
Dimensions (WX DxH) (mm)	L1475XW1650XH3050	L1525XW1650XH3050
Number of filters (PCS)	6	9
Filter element specification	325×800	0325×800
Filter material	Nano flame retardant filter material	Nano flame retardant filter material
Filtration area	141m2	212m2
Dust removal interface	0350mm	0400 mm
