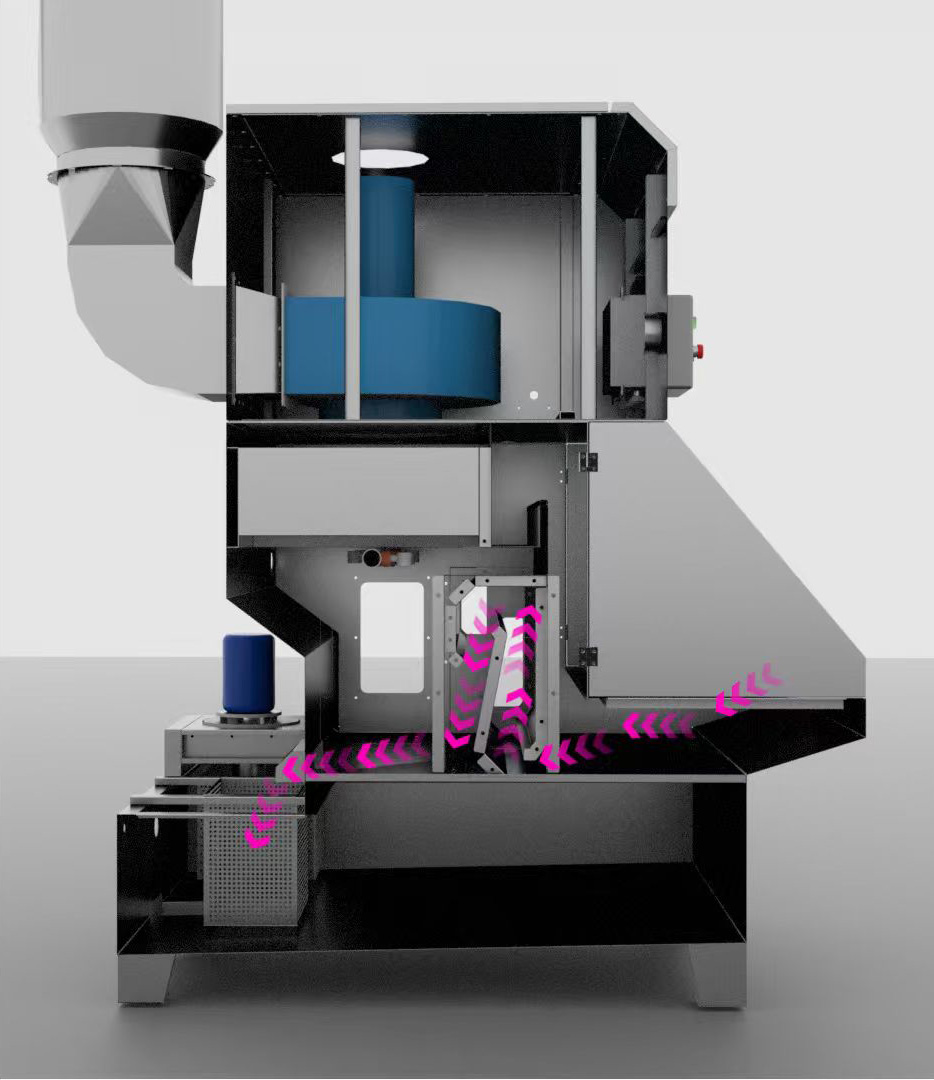

Water-circulation Wet Grinding Dust Removal Bench
Principle Introduction
The water-circulation spray wet dust removal bench is a high-efficiency air purification device. Based on unique water vortex technology, dust-laden gas enters the unit, and dust particles are captured by fully contacting high-speed rotating water flow. Combined with water spray and water curtain, it forms three-stage dust removal for higher efficiency, eliminating various fine dust without consumables. Widely used for grinding dust control in chemical, electronics, metalworking and other industries, it improves workplace air quality, cuts dust emission hazards, and features a compact structure. It plays an important role and has broad prospects in industrial environmental protection.
Application Industries
-Chemical industry
-Electronics industry
-Metalworking industry
-Pharmaceutical industry
-Food processing industry
-Stone processing industry
-Industries involving various explosion-proof dust scenarios
Product Parameters
Model |
Parameter name |
Value |
JS-SSDMT-1. 2 |
Size |
1200*1900*2230(mm) |
Size of the countertop |
DeepTOOmm, elevation from the ground 700mm |
|
Power |
2. 2KW*1 |
|
Air Volume |
3500-4000m3/h |
|
Wind Pressure |
1150pa |
|
Voltage |
380v50HZ |
|
Material of the device |
201 Stainless steel material |
|
Plate thickness |
1. 2 mm |
|
Circulating Cater Pump |
1. 5kW pipeline liquid pump, explosion-proof design. |
|
Dust collection method |
Collected using nylon mesh bags. |
|
JS-SSDMT-1. 5 |
Size |
1500*1900*2230(mm) |
Size of the countertop |
Deep700mm, elevation from the ground 700mm |
|
Power |
3KW*1 |
|
Air Volume |
4500-5000m3/h |
|
Wind Pressure |
1150pa |
|
Voltage |
380v50HZ |
|
Material of the device |
201 Stainless steel material |
|
Plate thickness |
1. 2 mm |
|
Circulating Cater Pump |
1.5kW pipeline liquid pump, explosion-proof design. |
|
Dust collection method |
Collected using nylon mesh bags. |
|
JS-SSDMT-2 |
Size |
2000*1900*2230(mm) |
Size of the countertop |
Deep700mm, elevation from the ground 700mm |
|
Power |
4KW*1 |
|
Air Volume |
7000-8000m3/h |
|
Wind Pressure |
1150pa |
|
Voltage |
380v50HZ |
|
Material of the device |
201 Stainless steel material |
|
Plate thickness |
1. 2 mm |
|
Circulating Cater Pump |
1. 5kW pipeline liquid pump, explosion-proof design. |
|
Dust collection method |
Collected using nylon mesh bags. |
|
JS-SSDMT-2.5 |
Size |
2500*1900*2230(mm) |
Size of the countertop |
Deep700mm, elevation from the ground 700mm |
|
Power |
4. 4KW(2*2. 2kw) |
|
Air Volume |
7500-8500m3/h |
|
Wind Pressure |
1150pa |
|
Voltage |
380v50HZ |
|
Material of the device |
201 Stainless steel material |
|
Plate thickness |
1. 2 mm |
|
Circulating Cater Pump |
1.5kW pipeline liquid pump, explosion-proof design. |
|
Dust collection method |
Collected using nylon mesh bags. |
|
JS-SSDMT-3 |
Size |
3000*1900*2230(mm) |
Size of the countertop |
Deep700mm, elevation from the ground 700mm |
|
Power |
6KW(2*3kw) |
|
Air Volume |
9000-10000m3/h |
|
Wind Pressure |
1150pa |
|
Voltage |
380v50HZ |
|
Material of the device |
201 Stainless steel material |
|
Plate thickness |
1. 2 mm |
|
Circulating Cater Pump |
1. 5kW pipeline liquid pump, explosion-proof design. |
|
Dust collection method |
Collected using nylon mesh bags. |
|
JS-SSDMT-4 |
Size |
2500*1900*2230(mm) |
Size of the countertop |
Deep700mm, elevation from the ground 700mm |
|
Power |
8KW(2*4kw) |
|
Air Volume |
12000-13000m3/h |
|
Wind Pressure |
1150pa |
|
Voltage |
380v50HZ |
|
Material of the device |
201 Stainless steel material |
|
Plate thickness |
1. 2 mm |
|
Circulating Cater Pump |
1.5kW pipeline liquid pump, explosion-proof design. |
|
Dust collection method |
Collected using nylon mesh bags. |
