WATER SWIRL WET SCRUBBER

Producet Introduction

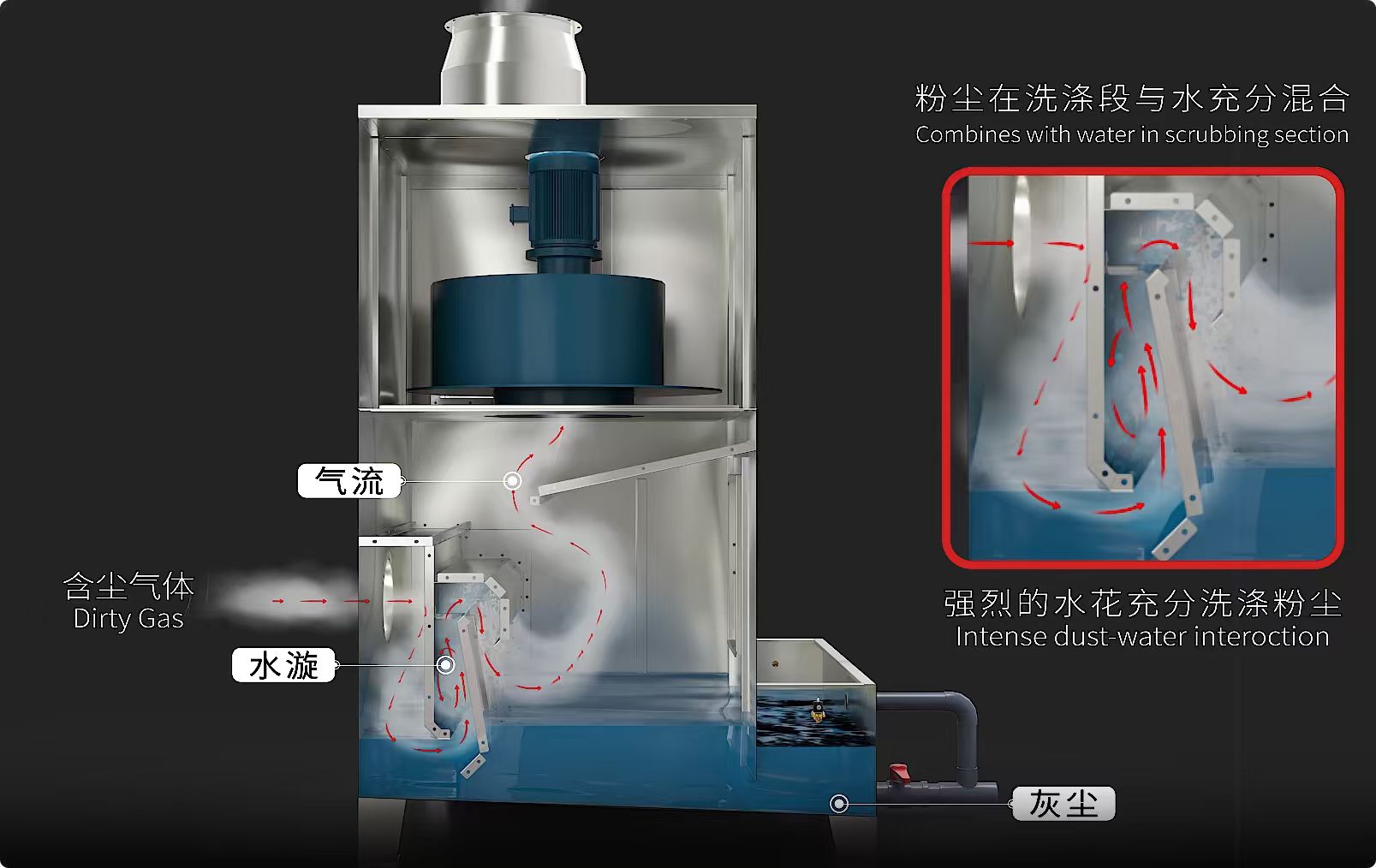

The Water CycI one Wet Dust Col lector utiIizes the gas s kinetic energy to impact a Iiquid surface, formi ng a water mi st that captures dust part i cIes through a un i que water cycIonic act i on .
Th i s process el imi nates the need for a trad i t ionaI water pump, resu11 i ng i n relatively Iow operat i ng energy consumpt i on . 11 eff i c i ent Iy removes f i ne dust and i s widely appI i ed i n i ndustr i es I i ke mining, meta I Iurgy, and bu i Id i ng mater i a Is to i mprove a i r qua I i ty . Its compact structure and effect i veness make i t s i gn i f i cant for i ndustr i a I env i ronmentaI protect i on.

Configurati on Table

Technical Parameters
Equipment Model	unit	JS-ZJS-4	JS-ZJS-5. 5	JS-ZJS-7. 5	js-zjs-ii	JS-ZJS-15	note
Structural Form		Gas-liquid Contact Type	Gas-liquid Contact Type	Gas-liquid Contact Type	Gas-liquid Contact Type	Gas-liquid Contact Type
Air Volume	m3/h	3000-4000	4500-5000	6500-7000	9500-10000	13000-14000
Size	mm	100015002500	120015002700	160015002700	240015002860	320015002860
Fan		Centrifugal fan	Centrifugal fan	Centrifugal fan	Centrifugal fan	Centrifugal fan
Power	kw/h	4.0	5.5	7.5	11.0	15.0
Number of Fans	台	1	1	1	1	1
Inlet Dimensions	mm	250	300	350	420	520
Outlet Dimensions	mm	370M40	500*440	630*440	800*440	6304402
Water Inlet Dimensions		DN25	DN25	DN25	DN25	DN20
Drain Outlet Dimensions		DN63	DN63	DN63	DN63	DN63
Overeflow Outlet Dimensions		DN50	DN50	DN50	DN50	DN50
Material		201stainless steel	201stainless steel	201stainless steel	201stainless steel	201stainless steel
Plate Thickness	mm	1.5	1.5	2	2	2
Color		natural color of stainless steel	natural color of stainless steel	natural color of stainless steel	natural color of stainless steel	natural color of stainless steel
Dust Purification Efficiency	%	295	295	295	295	295
Noise	db	W75	W75	W75	W75	W75
Resistance	pa	1800	1800	1800	1800	1800
Note: Explosion-proof electric control box and explosion-proof fan are optional.
